5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants

China 5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants supplier
5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants supplier 5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants supplier 5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants supplier 5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants supplier

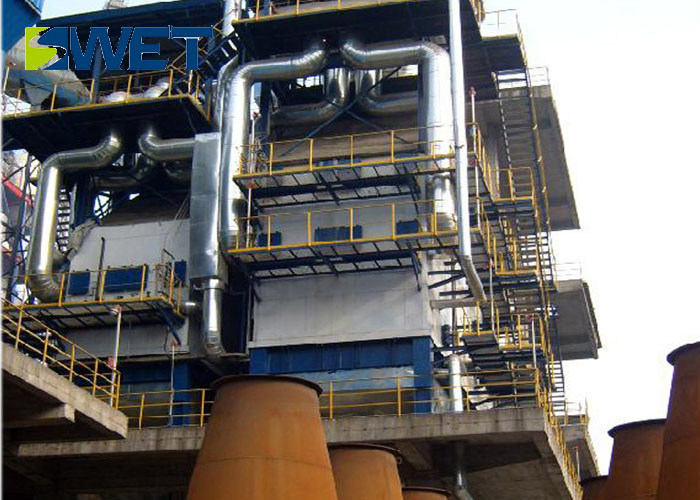

Large Image :  5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: Q16-740-5-3.82/440-0013

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Standard Packaging
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash or on the basis of mutual agreement
Supply Ability: 200 Set/Sets Per Year
Contact Now
Detailed Product Description
Flue Gas Volume: 16000m³/h Flue Gas Temperature: 740℃
Evaporation: 5T/H Steam Pressure: 3.82MPa
Steam Temperature: 440℃ Keywords: Waste Heat Boiler



5T Intelligent Three Waste Heat Mixed Waste Heat Boiler For Power Plants



Product Description



1. The boiler is vertical natural circulation waste heat boiler (single-drum vertical type), the boiler body, steel structure, refractory insulation materials and accessories.



2. The side wall of the boiler is designed into a film-type water wall structure, and the middle of the flue gas channel is arranged with three groups of heating surfaces of the tube screen to divide the hearth into four channels. The first channel and the second channel form the roof of the first channel, the second channel and the third channel through the common header; and the upper part of the third and fourth channels forms the roof of the fourth channel.



3. The superheater is arranged in the fourth passage. The lower part of the radiating channel is composed of a membrane water wall, a hopper, and a ash removing machine.



5T Intelligent Mixed Waste Heat Boiler Vertical Type For Power Plants

Technical Parameters



Model

Flue gas volume

Flue gas temperature

Evaporation

Steam pressure

Steam temperature

Unit

m³/h

t/h

MPa

Q19/1100-6-1.25

19000

1100

6

1.25

Saturated Vapor

Q29/800-10-2.5

29000

800

10

2.5

Saturated Vapor

QZ9/1150-4-0.4

9000

1150

4

0.4

Saturated Vapor

Q15-420-8-2.4/350

15000

420

8

2.4

350

Q16-740-5-3.82/440

16000

740

5

3.82

440

Q120/900-82-3.82/450

120000

900

82

3.82

450

QC28/720-9-1.0

12000

720

9

1.0

Saturated Vapor

QC18/1200-4-1.25/220

18000

1200

4

1.25

220
