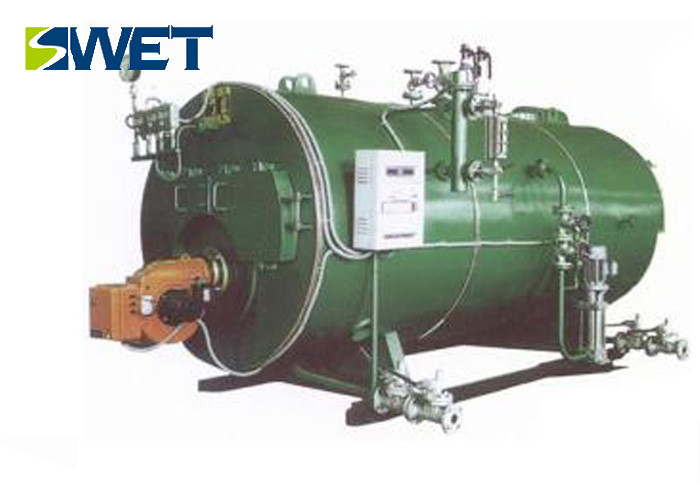

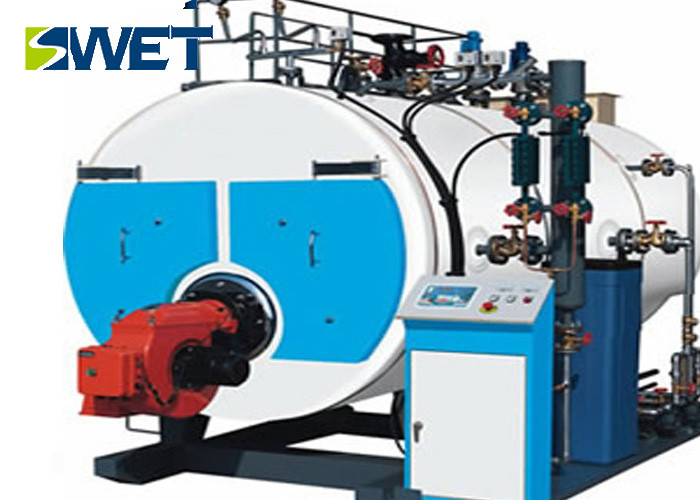

Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Wooden boxes plus plastic paper packaging | Delivery Time : | 30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1200 Sets / Year |
| Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS |
|
Detail Information |
|||
| Rated Capacity/t/h: | 2 | Working Pressure/MPA: | 1.0 |
|---|---|---|---|
| Steam Temperature/℃: | 184 | Feed Temperature/℃: | 20 |
| Testing Efficiency/%: | 96 | Gas Consumption/kg/h: | 140 |
| High Light: | natural gas steam boiler,industrial electric steam boiler |
||
Product Description
| WNS series automatic gas (oil) steam energy saving boiler product selection form | ||||||||
| Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Diesel consumption | Gas consumption | Outline dimension |
| Unit | t/h | Mpa | ℃ | ℃ | ％ | Kg/h | Nm³/h | mm(L*W*H) |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 97.62 | 1231.56 | 1407.5 | |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1276.63 | 1459 |
8870*3550 *3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/197/204 | 105 | 97.2 | 985.25 | 1126 |
7450*3520 *4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 732.59 | 837.25 |
6370*2812 *3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 96.7 | 576.84 | 659.25 |
6000*2920 *3403 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 379.32 | 433.51 |
5470*2770 *3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 96.48 | 358.16 | 409.33 |
5160*2410 *3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 292.45 | 334.23 |
4880*2710 *2600 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 214.48 | 245.12 |
4762*2447 *2469 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 143.26 | 163.72 |
4030*2010 *2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | ||||||||
