Double Drum Biomass Chain Grate Boiler Central Heating Equipment SZL Series

Product Details:
Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL30-2.5-T-0030
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year

Detail Information

Rated Evaporation: 30t/h Working Pressure: 2.5MPa
Return Water Temperature: 104℃ Keywords: Chain Grate Boiler
Steam Temperature: 224℃ Boiler Dimensions: 13000x7100x9500mm
Exhaust Temperature: 160℃ Thermal Efficiency: 85%
Type: Natural Circulation Style: Horizontal,Vertical
Fuel: Wood Pellet,wood Chip,biomass Pellet Application: Industrial Production,wood Industry,Textile Mill
High Light:

coal fired boiler

,

longitudinal drum boiler

Product Description

Double Drum Automatic Control Biomass Chain Grate Boiler Central Heating Equipment



Product Description



1. SZL series boiler is a new product developed independently by SWET boiler company for the characteristics of biomass fuel. Adopting the original furnace structure and unique combustion technology. Fully integrate and integrate the new technology, new achievements, new materials and new technology of the boiler, improve and enhance the combustion, heat transfer, energy saving and environmental protection performance of the boiler. The flue gas emission index meets the national environmental protection standards and can replace the consumption of mineral resources such as coal, oil, electricity and high-grade secondary energy boilers.



2. Grate chamber structure, for the fuel at different stages of combustion provides a precise and reasonable with the wind. The air supply of the front plenum serves as a fuel preheating retort gasification combustion process. The combustible gas enhances the mixing with the air and the flue gas disturbance under the action of the dust-blocking wall, and prolongs the residence time of the combustible gas in the area And the flame fullness.



Product Features



1. With three national patent products;



2. Three-way horizontal body design, symmetrical furnace center low arrangement;



3. Corrugated furnace pipe and thread pipe matching design;



4. Full butt welded structure;



5. Front and rear double sealed box structure;



6. Automatic intelligent control.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800

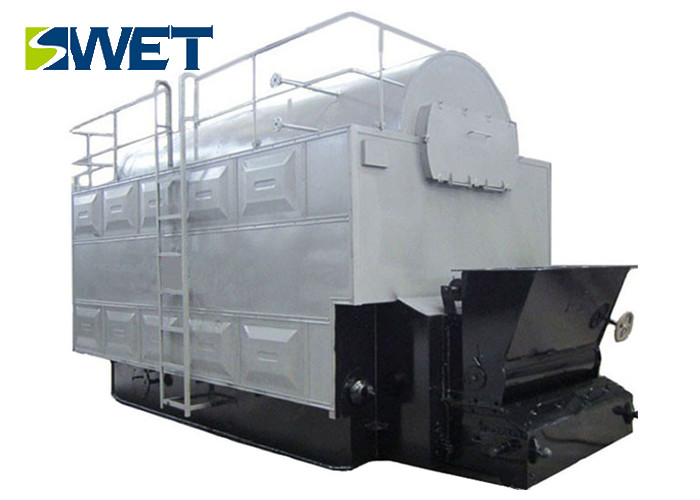

Double Drum Biomass Chain Grate Boiler Central Heating Equipment SZL Series 0
