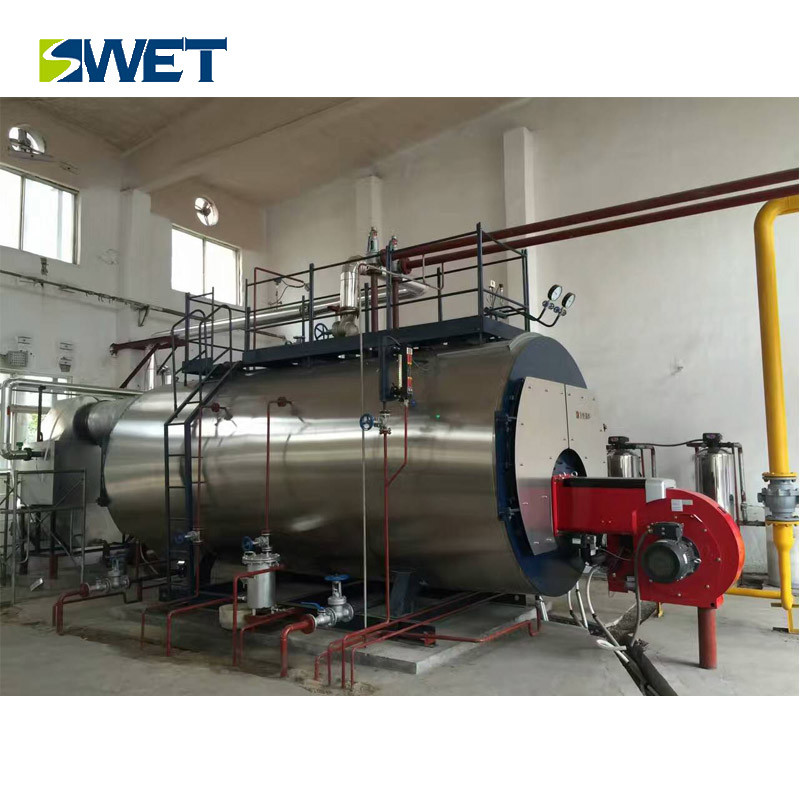

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 set | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Wood care plus tarpaulin packaging | Delivery Time : | 25-30 works day |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 15000 cubic meter Per Year |
| Place of Origin: | Henan,China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS |
|
Detail Information |
|||
| Structure: | Fire Tube | Pressure: | 1.6MPa |
|---|---|---|---|
| Fuel: | Gas-fired | Usage: | Industrial |
| Output: | Steam | Rated Capacity: | 6t/h |
| Dimension: | 5470*2770*3195mm | ||
| High Light: | oil steam boiler,industrial electric steam boiler |
||
Product Description
Product Description
1. High Quality and Reliable Oil Gas Burner.
High combustion efficiency and environmental protection.
2. Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.
3. Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and reduce the NOx emission.
4. High Thermal Efficiency.
1) Adopts three pass heating system, improve the heat utilization efficiency.
2) Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.
3) By equipping with economizer, make full use of the heat of flue gas.
5. High Quality boiler auxiliaries and multiple safety protection devices.
(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)
6. Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the safe operation.
7. Convenient Maintenance
1) There are maintenance holes on the boiler, convenient for boiler internal installation, inspection and clean.
2) The explosion proof equipment has the fire sight glass and inspection gallery, it is convenient for furnace checking and maintaining.
Technical Parameters
| WNS series automatic gas (oil) steam energy saving boiler product selection form | Model | Unit | WNS6-1.25(1.6)-Q(Y) |
| Rated capacity | t/h | 6 | |
| Working pressure | Mpa | 1.25/1.6 | |
| Steam temperature | ℃ | 194/204 | |
| Feed temperature | ℃ | 105 | |
| Testing efficiency | ％ | 96.58 | |
| Diesel consumption | Kg/h | 379.32 | |
| Gas consumption | Nm³/h | 433.51 | |
| Outline dimension | mm(L*W*H) | 5470*2770*3195 |
