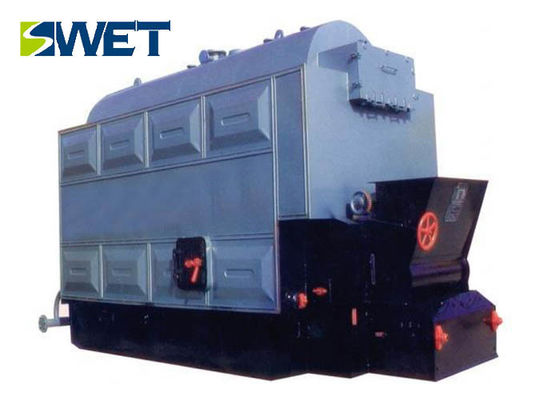

Power Plant Thermal Chain Grate Boiler Simple Operation Energy Saving

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs. Delivery Time : 25-35 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1500 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: SZL30-2.5-T-0027

Detail Information

Rated Evaporation: 30t/h Working Pressure: 2.5MPa
Return Water Temperature: 104℃ Keywords: Biomass Steam Boiler
Steam Temperature: 224℃ Color: Base On Needs
Model: SZL25-2.5-T-0027 Thermal Efficiency: 85%
High Light:

coal fired boiler

,

biomass pellet boiler

Product Description

New Industry Power Plant Thermal Fully Automatic Chain Grate Boiler



Product Description



1. The boiler body is a double boiler vertical water and heat boiler shell and tube boiler.



2. The water wall on the left and right sides of the furnace is a radiant heating surface, the two wings of the furnace are convection and heating surfaces, the convection heating surface of the threaded tobacco pipe is arranged in the drum, the whole arch is heat Protector shell.



3. A plurality of cigarette tubes are arranged inside the drum, and the left and right sides of the furnace are provided with water cooling walls of the light pipes. Some of the rising pipes are drawn toward the hearth to form the top of the furnace, and the bottom of the drum is hung with refractory bricks which are not directly exposed to the radiation of the high temperature flame. Below the symmetrical two convection flue, using hand grate, equipped with drums, induced draft fan for mechanical ventilation.



Product Features



1. Beautiful appearance: the use of heat-resistant materials and high-color board packaging. That is energy-saving insulation, but also beautiful and generous.



2. Simple operation: a coal can be run for several hours, users enjoy the same 24 hour heating as the power plant.



3. Energy saving economy: reasonable structure, adiabatic combustion, high combustion efficiency, energy saving, fuel costs at the end.



4. Environmental standards: the design of the combustion mechanism to achieve coal fired boiler emissions standards can be used in a class of environmentally friendly areas, noise free nuisance.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800
