Double Chain Grate Boiler Simple Structure Excellent Heat Resistance

China Double Chain Grate Boiler Simple Structure Excellent Heat Resistance supplier
Double Chain Grate Boiler Simple Structure Excellent Heat Resistance supplier Double Chain Grate Boiler Simple Structure Excellent Heat Resistance supplier Double Chain Grate Boiler Simple Structure Excellent Heat Resistance supplier Double Chain Grate Boiler Simple Structure Excellent Heat Resistance supplier

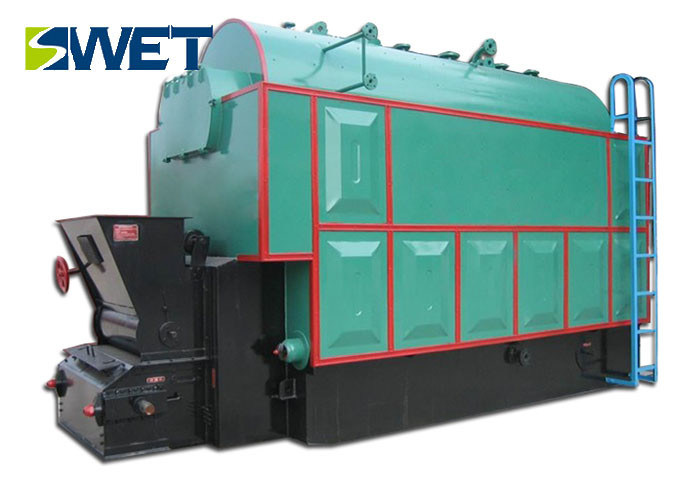

Large Image :  Double Chain Grate Boiler Simple Structure Excellent Heat Resistance

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL25-2.5-T-0022

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 25t/h Working Pressure: 2.5MPa
Return Water Temperature: 104℃ Keywords: Chain Grate Boiler
Steam Temperature: 224℃ Exhaust Temperature: 160℃
Color: Base On Needs Thermal Efficiency: 85%

25 Ton Coal Wood Fired Steam Double Chain Grate Boiler For Industrial Use



Product Description



1. SZL series boilers absorb the existing bulk, assembled boilers of all kinds of advantages developed, the product points up and down the assembly of the two major components of the factory, the upper part of the large furnace body, furnace walls, and insulation layer; the lower bulky By the chain grate and coal bucket composition;


2. Double drum vertical arrangement, up and down assembly structure, saving boiler room, reduce installation costs and infrastructure investment;


3. The use of closed air chamber structure, with a more uniform air, easy to adjust, coal adaptability;


4. Furnace dust removal efficiency, built-in cleaning, low concentration of the original dust;



Performance Advantages



1. The use of double-drum vertical layout, up and down assembly structure, the overall compact, short installation cycle, saving boiler room, reduce capital investment.



2. Heating surface layout fully, good insulation effect, high thermal efficiency of the boiler.



3. Bilateral wind, independent plenum, with a uniform wind, easy to adjust.



4. Boiler furnace arch momentum design, high combustion efficiency.





Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800
