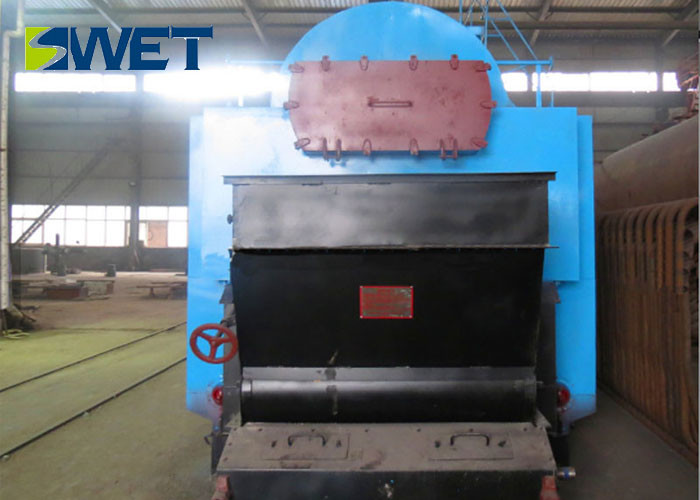

Industrial Chain Grate Steam BoilerBoiler 0.7 MPa 1.0Mpa 1.25Mpa 1.6Mpa Working Pressure
Product Details:
|
|
Place of Origin: | Henan China |
---|---|
Brand Name: | SWET |
Certification: | ISO9001 |
Model Number: | SZL20-1.6-T-0017 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set/Sets |
Price: | Negotiation |
Packaging Details: | The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs. |
Delivery Time: | 25-35 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement |
Supply Ability: | 1500 Set/Sets Per Year |
Detail Information |
|||
Rated Evaporation: | 20t/h | Working Pressure: | 1.6MPa |
---|---|---|---|
Return Water Temperature: | 104℃ | Keywords: | Steam Boiler |
Steam Temperature: | 204℃ | Boiler Dimensions: | 15820x4620x8680mm |
Exhaust Temperature: | 155℃ | Thermal Efficiency: | 83% |
High Light: | grate fired boiler,chain grate coal fired steam boiler |

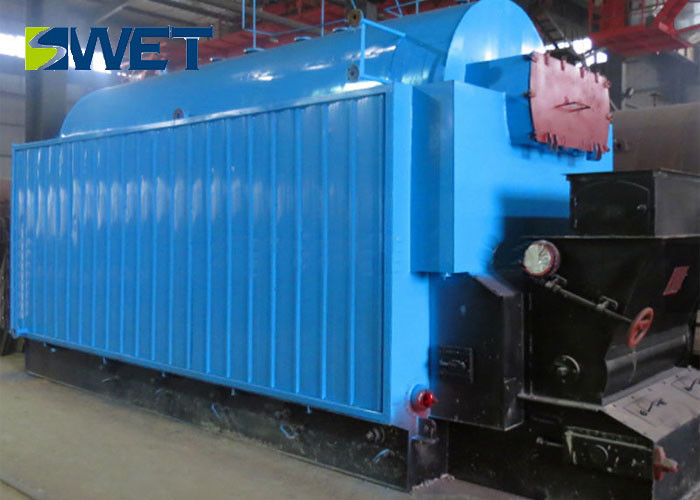

Product Description

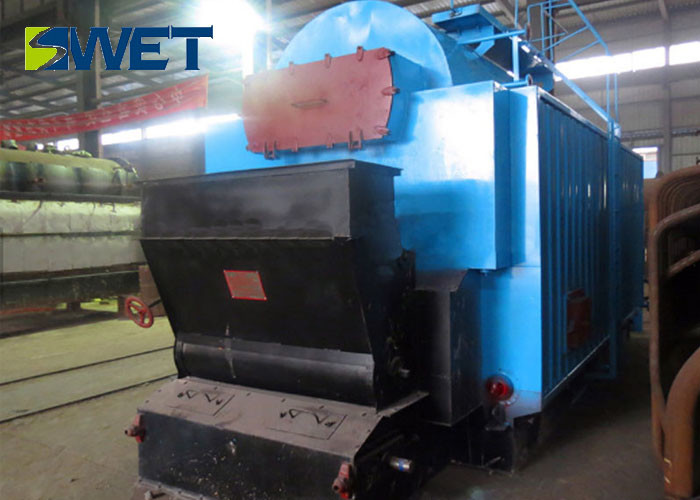

Structural Features
1. The boiler is natural circulation steam heating boiler, economizer to water into the boiler barrel, by convection tubes into the drum, natural circulation between the upper and lower boiler barrel.
2. By arrangement down at the lower drum on the tube box set into the wall, heat in water wall evaporation, water and the vapor mixture into the drum, the drum inside the equipment carries on the steam separation after qualified exhaust steam boiler through the main steam piping.
3. SZL10-1.25-T assembled water pipe chain grate boiler adopts double boiler barrel longitudinal structure.

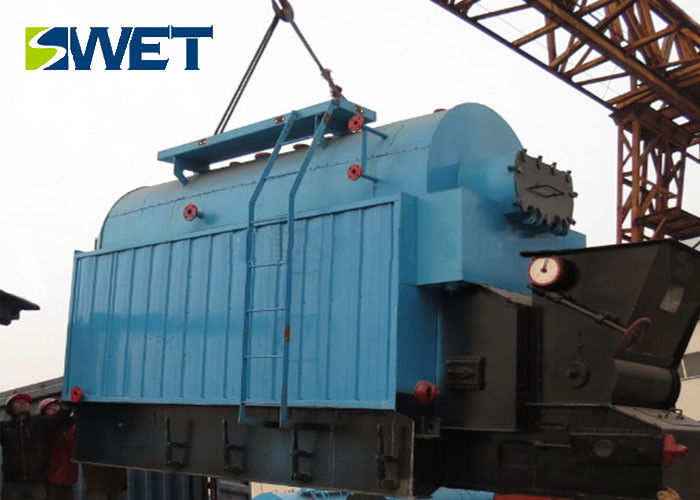

4. The boiler is mainly composed of assembly body, economizer,chain grate, feeding device, platform, escalator and so on. The main part of the boiler is two parts: the upper furnace and grate, the front arch and the back arch site masonry.
5. The normal water level of the boiler is on the center line of the boiler barrel, the highest safety water level is 50mm above the normal water level, and the highest and lowest safety water level is 50mm between the normal water level.
Technical Parameters
Boiler type and parameter list of double boiler barrel series chain grate boiler |
|||||||
Boiler model |
Rated evaporation |
Working pressure |
Steam temperature |
Water supply temperature |
Exhaust temperature |
Thermal efficiency |
Boiler dimensions |
Unit |
t/h |
Mpa |
℃ |
℃ |
℃ |
% |
mm |
SZL10-1.25-T |
10 |
0.7/1.0/1.25 |
170/184/194 |
104 |
150 |
≥80 |
8830x3180x5730 |
SZL15-1.6-T |
15 |
1.0/1.25/1.6 |
184/194/204 |
104 |
155 |
≥80 |
14000x4174x614 |
SZL20-1.6-T |
20 |
1.0/1.25/1.6 |
184/194/204 |
104 |
155 |
≥80 |
15820x4620x8680 |
SZL25-2.5-T |
25 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
12800x6000x8420 |
SZL30-2.5-T |
30 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
13000x7100x9500 |
SZL35-2.5-T |
35 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
3000x7600x9800 |
