1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions

China 1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions supplier
1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions supplier 1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions supplier 1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions supplier 1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions supplier

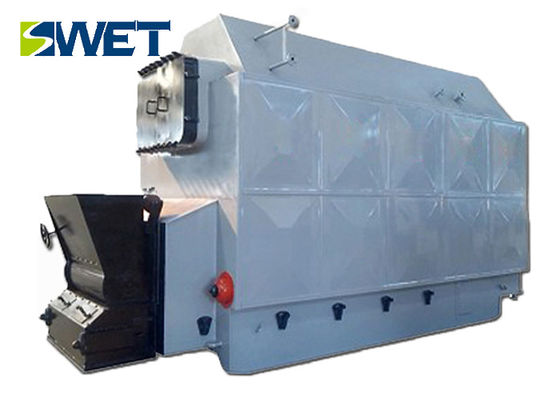

Large Image :  1.6MPa Chain Grate Steam Boiler 15820x4620x8680mm Boiler Dimensions

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL20-1.6-T-0016

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 20t/h Working Pressure: 1.6MPa
Return Water Temperature: 104℃ Keywords: Steam Boiler
Steam Temperature: 204℃ Boiler Dimensions: 15820x4620x8680mm
Combustion Mode: Suspension Combustion + Layer Combustion Fuel: Biomass

1.6MPa 20T Industrial Automatic Packaging Biomass Fired Steam Boiler Machine For Sale



Structural Features



1. The basic structure of the structural drawings from the drum, the next drum, water wall, convection tube bundle, economizer, air preheater and other components.



2. The front part of the boiler is composed of a water cooled wall and a front to back water cooled arch is formed by the front and rear water-cooling walls. A convection tube bundle is arranged between the upper and lower drums. The horizontal beam is arranged on the tube bundle to allow the flue gas to flow horizontally. Preheater. Burning equipment using scale chain grate, sub chamber ventilation structure, regulation sensitive.



3. Biomass steam boiler to draw the advantages of fast boilers, compact structure, the boiler room is a single layout, easy installation site, short cycle, low cost, easy operation and other advantages.



4. This series of steam boilers for industrial and domestic steam, the corresponding capacity of the water heater for industrial and residential heating.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800



steam boiler
