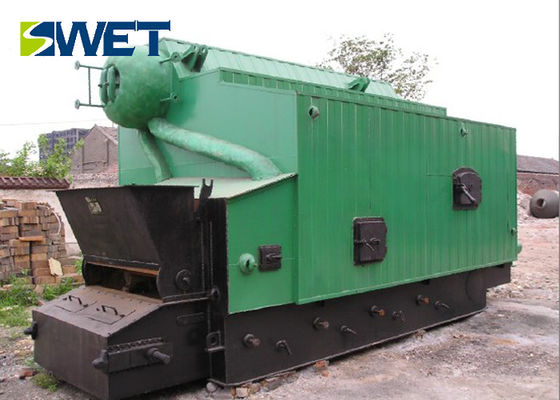

15T Longitudinal Chain Grate Steam Boiler 150℃ Exhaust Temperature

Product Details:
Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL15-1.6-T-0008
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year

Detail Information

Rated Evaporation: 15t/h Working Pressure: 1.6MPa
Exhaust Temperature: 150℃ Keywords: Chain Grate Steam Boiler
Steam Temperature: 204℃ Design Fuel: Straw
Boiler Dimensions: 14000x4174x614mm Thermal Efficiency: 83%
High Light:

grate fired boiler

,

biomass fired steam boiler

Product Description

15T Fully Automatic Longitudinal Chain Grate Steam Boiler For Textile Industry



Product Description



1. Burning part of the double grate combustion chamber, heating, booster fast, unburned gas after secondary combustion, play a full combustion, smoke, dust removal.



2. Furnace structure and flue gas flow, reasonable layout, good heat transfer, reasonable design of the boiler, simple structure, easy operation and maintenance, small footprint, less capital investment, small enterprises and institutions producing steam, heating and other more ideal One of the devices.



3. Using straw as fuel, the potential energy in the straw is released by reasonably organizing the combustion, transferring the heat energy to the water, turning the water into steam under certain parameters for power generation or production processes.



Performance Characteristics



1. Double drum and convection heating surface, and the multi-return combustion of flue gas design structure, resulting in high thermal efficiency of the boiler, water capacity, high quality steam space, energy saving.



2. The upper furnace wall is assembled by the factory, the lower furnace wall and front and rear arch are made of refractory clay brick silicate fiber and insulation material.



3. Fuel from coal hopper through the coal gate into the furnace combustion, burning embers cinder in the grate run into the slag hopper by the spiral slag discharge machine.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104



150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800



15T Longitudinal Chain Grate Steam Boiler 150℃ Exhaust Temperature 0
