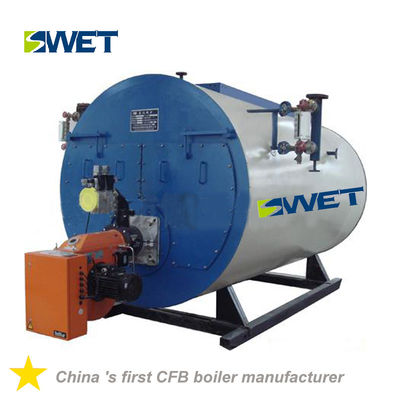

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 set | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Export neutral packaging | Delivery Time : | 20 days after receipt of deposit |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 set / year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS |
|
Detail Information |
|||
| Keywords: | Industrial Boiler | Warranty: | 12 Months |
|---|---|---|---|
| Thermal Efficiency: | 96.74% | Rated Capacity: | 10t/h |
| Working Pressure: | 1.6MPa | Steam Temperature: | 204℃ |
| High Light: | industrial biomass boiler,oil fired steam boiler |
||
Product Description
1.High Quality and Reliable Oil Gas Burner.
High combustion efficiency and environmental protection.
2.Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.
3.Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and reduce the NOx emission.
4.High Thermal Efficiency.
1)Adopts three pass heating system, improve the heat utilization efficiency.
2)Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.
3)By equipping with economizer, make full use of the heat of flue gas.
5.High Quality boiler auxiliaries and multiple safety protection devices.
(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)
6.Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the safe operation.
7.Convenient Maintenance
1)There are maintenance holes on the boiler, convenient for boiler internal installation, inspection and clean.
2)The explosion proof equipment has the fire sight glass and inspection gallery, it is convenient for furnace checking and maintaining.
Technical Parameters
| WNS series automatic gas (oil) steam energy saving boiler product selection form | Model | Unit | WNS10-1.25(1.6)-Q(Y) |
| Rated capacity | t/h | 10 | |
| Working pressure | Mpa | 1.25/1.6 | |
| Steam temperature | ℃ | 194/204 | |
| Feed temperature | ℃ | 105 | |
| Testing efficiency | ％ | 96.75 | |
| Diesel consumption | Kg/h | 732.59 | |
| Gas consumption | Nm³/h | 837.25 | |
| Outline dimension | mm(L*W*H) | 6370*2812*3514 |
Q1: How to install a boiler?
A1: Swet Boiler provides completed installation drawing and operation manual, or can send engineer to your site for guiding and trainning.
Q2: How many years is the boiler’s life span
A2: The boiler is designed for at least 10 years life span, but under good maintenance, usually the boiler can use at least 15 years, Swet Boiler provide full life after-sales service to each sold boiler.
Q3: How to choose a boiler model?
A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, Swet Boiler will suggest a suitable model based on your usage.
Q4: How is the warranty term?
A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
