Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature

China Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature supplier
Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature supplier Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature supplier Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature supplier Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature supplier

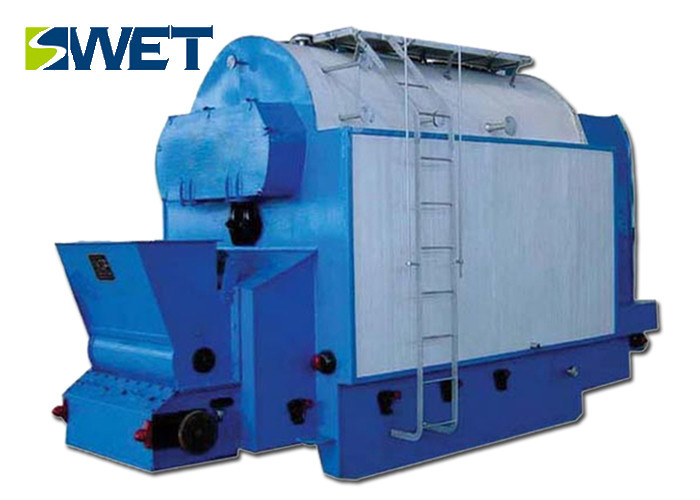

Large Image :  Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL10-1.25-T-0003

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 10t/h Working Pressure: 1.25MPa
Return Water Temperature: 20℃ Water Supply Temperature: 104℃
Steam Temperature: 194℃ Exhaust Temperature: 150℃
Combustion Mode: Suspension Combustion + Layer Combustion Thermal Efficiency: 81%



1.25MPa Biomass Pellet Fired And Coal Burning Chain Grate Steam Boiler For Industrial



Product Description



  The boiler is based on the experience of other biomass boilers, through the optimal design made of its fuel adaptability, can apply a variety of different types of straw fuel, combustion efficiency, especially to solve the straw fuel containing chlorine , Higher sulfur content on the heating surface of the boiler to reduce corrosion and wear on the equipment, but also reduces the pollution of flue gas on the environment, with high combustion efficiency and low pollution characteristics.



1. Boiler mainly consists of assembly body, economizer, chain grate, feeding device, platform escalator and other components.



2. Two main boiler body parts: the furnace and grate. Front arch and back arch site masonry.



3. The boiler's normal water level on the drum center line, the highest safe water level in the normal water level 50mm, the highest and lowest safe water level in the normal water level 50mm.



4. Water cooling system mainly consists of hearth, upper and lower drum, convection tube bundle.



Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800



Technological Process

Professional Chain Grate Coal Fired Steam Boiler 20℃ Return Water Temperature
