1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency

Certification
Good quality Gas Steam Boiler for sales
Good quality Gas Steam Boiler for sales
We are very satisfied the machine, it's easy to assemble and operate. advanced controlling theory with high-performance PLC, high level of automatic.

—— Smith

During the three times cooperation, all the machines are working well, hope your company getting better and better. A good beginning is half done.

—— Abdul Moiz

I'm Online Chat Now

1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency

China 1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency supplier
1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency supplier 1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency supplier 1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency supplier 1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency supplier

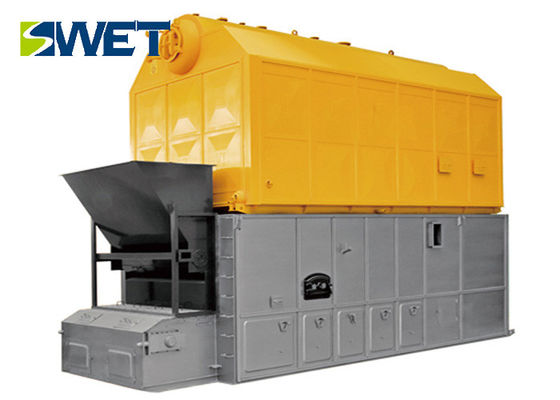

Large Image :  1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL10-1.25-T-0002

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 10t/h Working Pressure: 1.25MPa
Return Water Temperature: 104℃ Boiler Dimensions: 8830x3180x5730mm
Steam Temperature: 194℃ Design Fuel: Biomass
Combustion Mode: Suspension Combustion + Layer Combustion Thermal Efficiency: 81%



1.25MPa Low Pressure Biomass Chain Grate Steam Boiler For Industrial Plants



Product Description



1. SZL10-1.25-T boiler is a new type of boiler with clean combustion technology.Using straw as fuel, the potential energy in the straw is released by reasonably organizing the combustion, transferring the heat energy to the water.



2. The boiler is based on the experience of other biomass boilers, through the optimal design made of its fuel adaptability, can apply a variety of different types of straw fuel, combustion efficiency, especially to solve the straw fuel containing chlorine , Higher sulfur content on the heating surface of the boiler to reduce corrosion and wear on the equipment, but also reduces the pollution of flue gas on the environment, with high combustion efficiency and low pollution characteristics.



Advantage



1. Using natural blanking, positive combustion furnace row of combustion.



2. Water quality requirements: boiler feed water, pot water quality should be consistent with GB / T1576 "industrial boiler water quality" requirement.



3. The boiler has a high and low water level alarm interlock device, make the boiler run safe and reliable.



Summary

1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency

Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104



150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800

1.25MPa Low Pressure Chain Grate Steam Boiler High Combustion Efficiency
