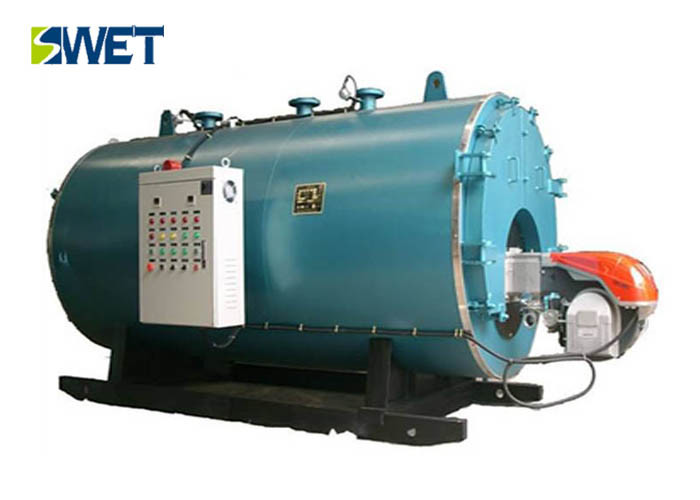

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS3-1.0(1.25)(1.6)-Q(Y)-3019 |
|
Detail Information |
|||
| Rated Evaporation: | 3 T / H | Rated Working Pressure: | 1.0/1.25/1.6 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 184/197/204 ℃ | Feed Water Temperature: | 20 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS3-1.0(1.25)(1.6)-Q(Y)-3019 |
| Testing Efficiency: | 95.99 % | Color: | Customer Requirements |
| High Light: | industrial biomass boiler,industrial gas boiler |
||
Product Description
Product description
1. Gas steam boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valve can play a role in pressure relief.
2. The gas steam boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.
3. Using a special packaging design, the boiler looks neat and beautiful
Product advantages
1. Sixty years of gas steam boiler manufacturing enterprise culture,top ten enterprises of boiler manufacturing industry in China.
2. More than 2000 environmental protection industrial boilers have been sold at home and abroad, performance, quality and stability.
3. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 245.12 | 95.99 | 4762*2447*2469 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
FAQ
1. Q:When you ship my order?
A:Normally 7-30 days after receiving your payment.
2. Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
3. Q: What is the boiler warranty?
A: 2 years.
4. Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
.
