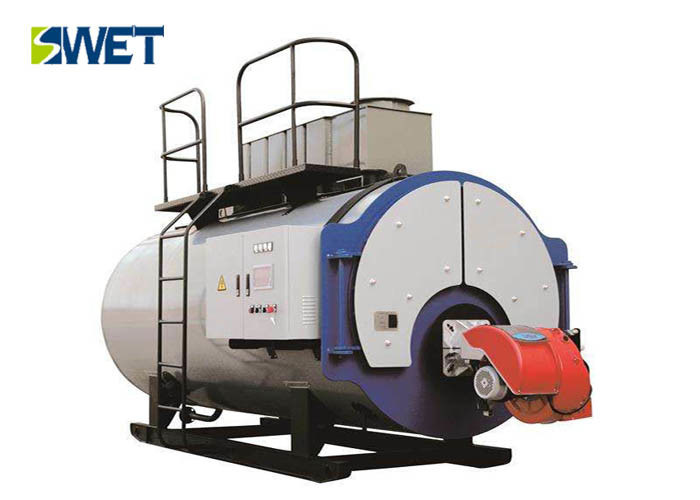

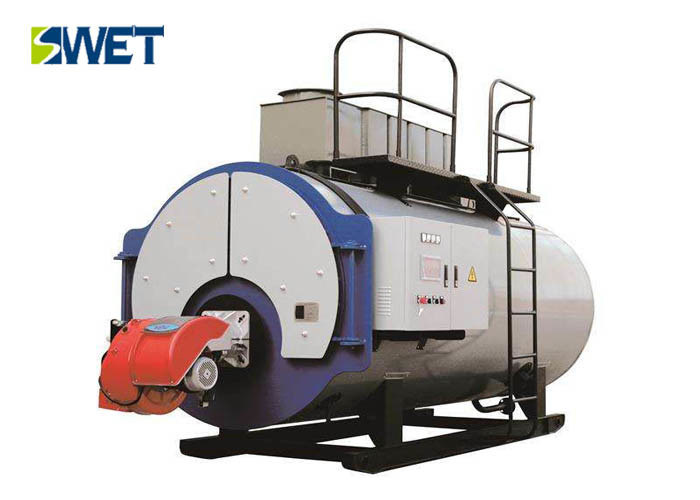

High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers

Certification
Good quality Gas Steam Boiler for sales
Good quality Gas Steam Boiler for sales
We are very satisfied the machine, it's easy to assemble and operate. advanced controlling theory with high-performance PLC, high level of automatic.

—— Smith

During the three times cooperation, all the machines are working well, hope your company getting better and better. A good beginning is half done.

—— Abdul Moiz

I'm Online Chat Now

High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers

China High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers supplier
High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers supplier High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers supplier High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers supplier High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers supplier

Large Image :  High Efficiency Gas Oil Fired Steam Boiler , 5 T/H Oil Fired Residential Boilers

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: WNS5-1.25(1.6)-Q(Y)-3017

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 5 T / H Rated Working Pressure: 1.25/1.6 MPa
Rated Steam Temperature: 194/204 ℃ Feed Water Temperature: 20 ℃
Keywords: Gas Steam Boiler Model: WNS5-1.25(1.6)-Q(Y)-3017
Testing Efficiency: 96.48 % Color: Customer Requirements

1.25 Mpa 5 T/h Oil Gas Steam Boiler For Residential Or Industry



Product description



 1. The series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back        fire tube structure.



 2. The furnace with low profile is arranged in the center of the furnace.



 3. The shell and the tube plate, the furnace tube and the wet-smoke tube plate are all butt-welded. In              order to restrain the generation of NOx, a lower furnace volume heat load



Product advantages



   1. Gas steam boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable



    2. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise



Specification



WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 334.23 96.3 4880*2710*2600
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output



FAQ



1. Q:How many years is the boiler’s life?

    A:The boiler is designed for 20years life.



2. Q:How to choose a boiler model?

    A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage



3. Q:How is the warranty term?

    A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
