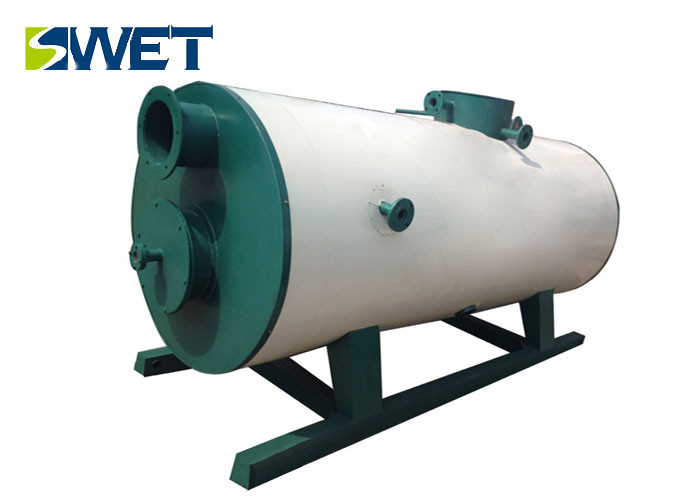

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
|
Product Details:
|
|
| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SWET |
| Certification: | ISO9001 |
| Model Number: | WNS2-1.25-Y、Q-3014 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | Negotiation |
| Packaging Details: | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement |
| Supply Ability: | 1500 Set/Sets Per Year |
|
Detail Information |
|||
| Rated Evaporation: | 2 T / H | Rated Working Pressure: | 1.0/1.25 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 184/197/204 ℃ | Feed Water Temperature: | 20 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS2-1.25-Y、Q-3014 |
| Testing Efficiency: | 95.81 % | Gas Consumption: | 163.72 Nm³/h |
| High Light: | industrial biomass boiler,oil fired steam boiler |
||
Product Description
Product description
1. Gas steam boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valve can play a role in pressure relief.
2. The gas steam boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check, clean
Product advantages
1. Gas steam boiler to light oil and natural gas for the design of fuel, you can also burn city gas or liquefied petroleum gas, fuel adaptability, energy efficient, low operating costs.
2. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise.
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 334.23 | 96.3 | 4880*2710*2600 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 163.72 | 95.81 | 4030*2010*2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
FAQ
1. Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
2. Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
3. Q: What about the production
A: Produce time is 30 days
