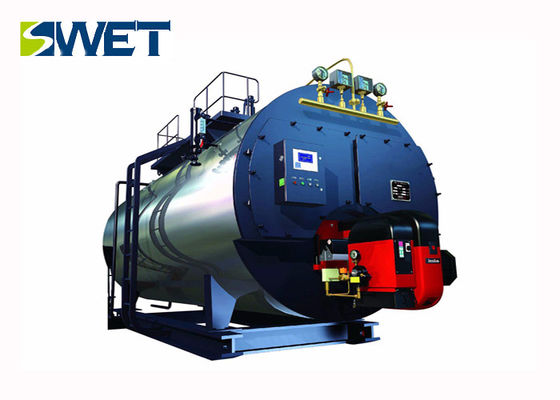

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS15-1.0(1.25)(1.6)-Q(Y)-3004 |
|
Detail Information |
|||
| Rated Evaporation: | 15 T / H | Rated Working Pressure: | 1.6 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 184/197/204 | Feed Water Temperature: | 105 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS15-1.0(1.25)(1.6)-Q(Y)-3004 |
| Gas Consumption: | 1126 Nm³/h | Color: | Based On Customer's Needs |
| High Light: | industrial biomass boiler,industrial gas boiler |
||
Product Description
Product description
The WNS series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure. The furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load
Product advantages
1.Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable
2. Gas steam boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.
3. 80mm thick aluminum silicate fiber for insulation, light weight, good thermal insulation, heat loss
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
