Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS10-1.25-Y、Q-3001 |
|
Detail Information |
|||
| Rated Evaporation: | 10 T / H | Rated Working Pressure: | 1.25 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 193.3 ℃ | Feed Water Temperature: | 20 ℃ |
| Design Fuel: | Light Oil, Natural Gas | Color: | Based On Customer's Needs |
| Keywords: | Gas Steam Boiler | Model: | WNS10-1.25-Y、Q-3001 |
| High Light: | industrial gas boiler,oil fired steam boiler |
||
Product Description
Product description

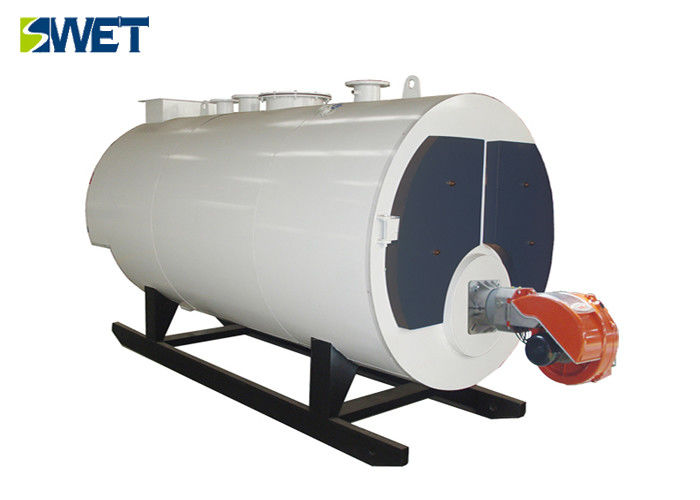

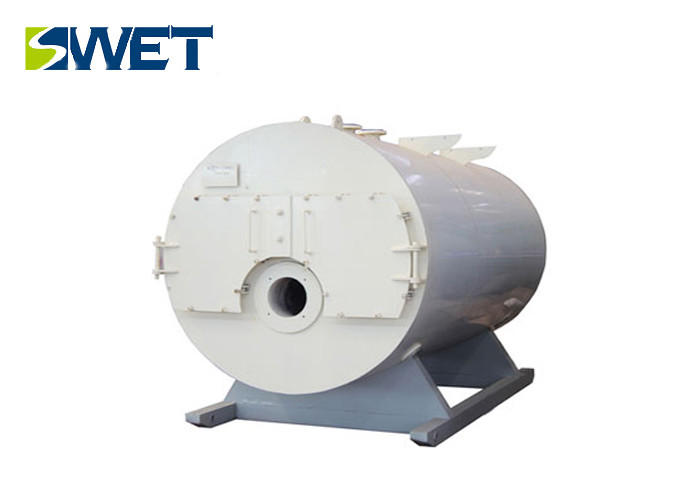

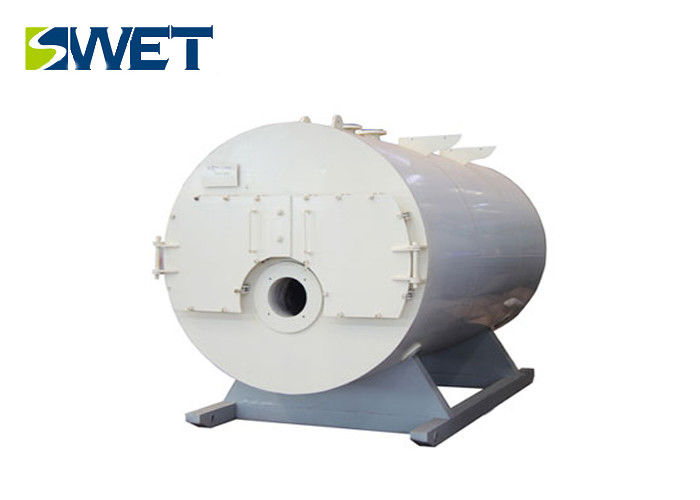

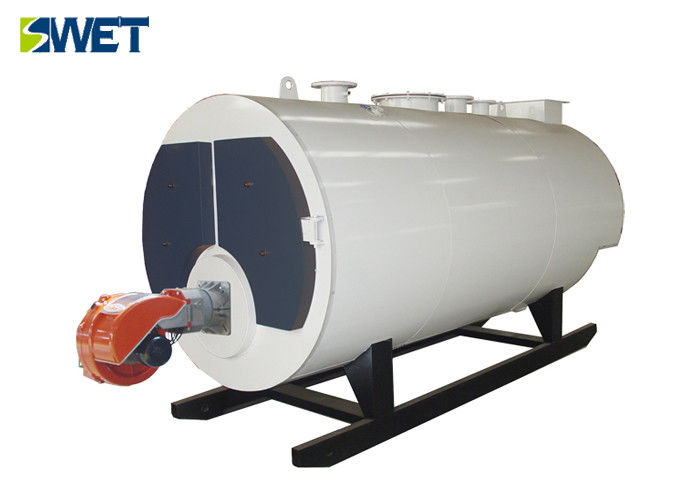

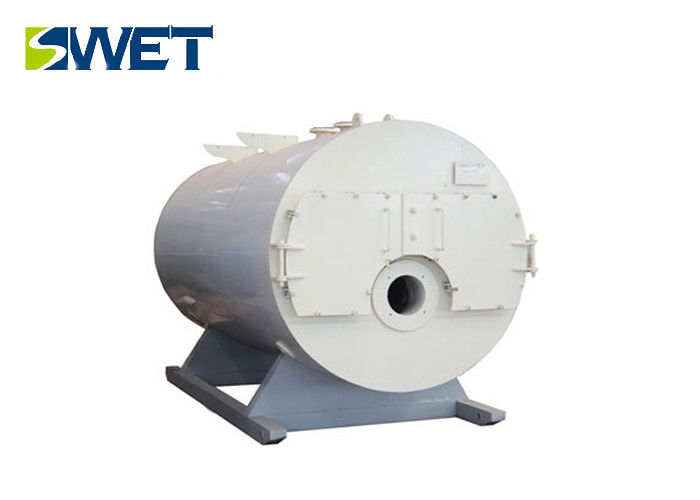

1. WNS series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure.
2. Gas steam boiler installed three pressure controller, automatic control system through the computer control and overpressure shutdown protection, in addition to two safety valve can play a role in pressure relief
3. The gas steam boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check, clean
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 409.33 | 96.48 | 5160x2410x3015 |
Product advantages
1. High thermal efficiency
100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.
2. High welding quality
Main boiler welding joint are heat treated to remove the stress ensures the welding quality. Automatic welding facilities guarantee the 100% passing rate of flaw detection.
CASE
1. 10ton WNS series gas steam boiler Bangladesh BreweryProcessing Plant
the steam capacity is 10t/h
2. SZS series Gas Fired Condensing Steam Boiler For Mongolia food packaging company
steam capacity: 6t/h, working
